Please Note: The HPRO-C1 is no longer manufactured. Please refer to the outdoor housings page for a replacement.

The HPRO-C1 Small CCTV Camera Housing is a more compact alternative to the HPRO-605 outdoor housing. The HPRO-C1 is compatible with box style cameras such as the PRO-680DN. It will work with both Analog and IP box style surveillance cameras. The dimensions of the HPRO-C1 are 9.5 Inches Long (11 Inches with shield) by 4.25 Inches Tall by 5.5 Inches Wide. The housing includes the CM-26W mounting bracket.

Small CCTV Camera Housing Features

• Forward opening hinged lid
• Compact / Mini sized Design
• Weatherproof Aluminum Construction
• Designed for Indoor / Outdoor applications
• Easy access for service & installation
• Bone Color (off white)
• Mounting bracket included
• White color

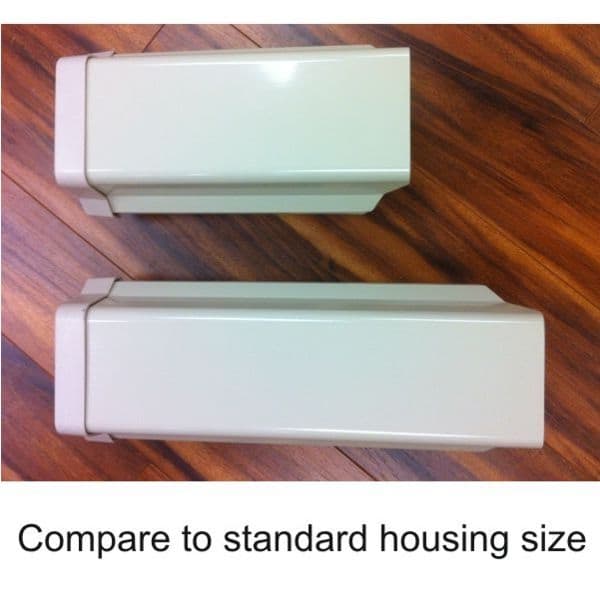

Small Camera Enclosure Size

Housing Installation

This outdoor housing is very easy to install. Follow these instructions to learn how to install a camera inside the housing.

The top of the housing unlatches and opens upward. Installers can remove the camera mounting tray by pulling up on it. Box-style CCTV and IP cameras typically include screws and have pre-made screw threads that can be used to mount the camera to the tray. The tray simply pushes back into the housing via the rails that can be seen above. Those rails hold the camera tray securely in place but do allow you to slide the camera forward or back when sufficient pressure is applied.

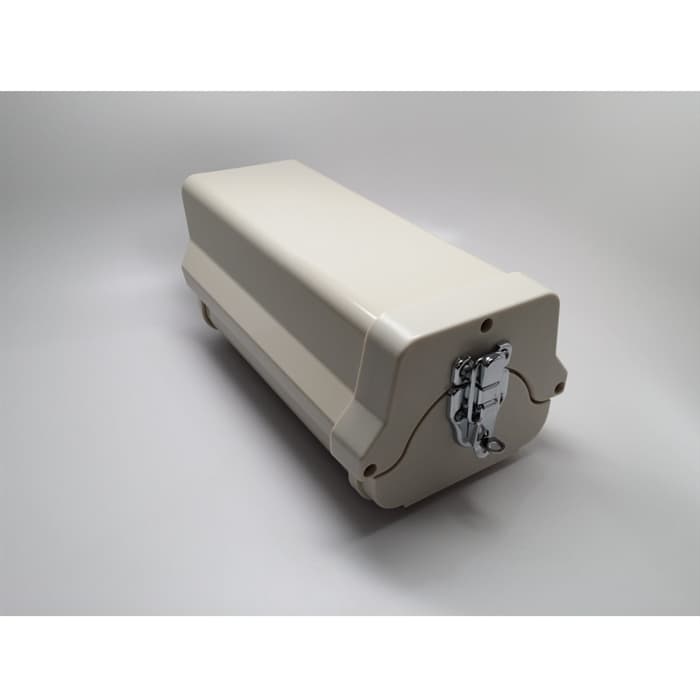

After the camera is mounted inside the housing, this latch secures the lid. Installers can also add a small padlock to secure the camera if required.

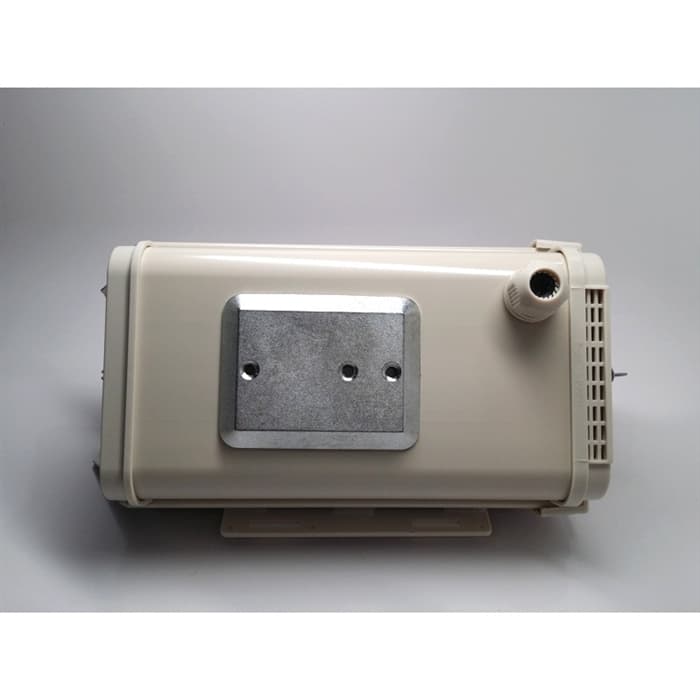

Cables are fed through the cable grommet on the bottom of the housing. The bracket is attached to the housing using these pre-threaded screw holes. There are ventilation holes on the underside of the housing so that the electronics inside do not overheat.
