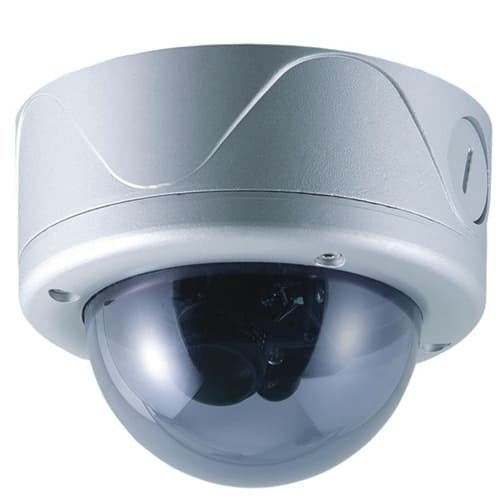

WDR-200DN Wide Dynamic Range Camera, WDR Dome, 560 TV Lines
Wide Dynamic Range Camera

Alternative Views:

Wide Dynamic Range Camera



Discontinued

Please refer to the WDR-D540VF3 as a replacement.

Our Price: $359.99


Free Shipping
Product Code: WDR-200DN


Cables:

Discontinued
Description

The WDR-200DN wide dynamic range camera uses a 1/3" Sony Super HAD sensor to capture 560 TV lines of color resolution. This WDR dome camera has a 2.8 to 12mm DC auto iris varifocal lens so that you can adjust the image to have a super wide angle or zoomed in close on specific areas for surveillance. The true day/night capability supports low light surveillance down to an amazing 0.00004 LUX. This WDR camera is dual voltage so it supports both DC12V and AC 24 power. This WDR, light levels and all special setting for this camera are setup using the built in OSD (on screen display).

Wide Dynamic Range Camera Use

WDR cameras are designed to be used for indoor surveillance applications where there is a large difference in foreground and background light levels (there is a wide dynamic range of light). This is typical in storefront and office buildings that have large glass walls with direct sunlight outside. The below images illustrate this situation and show images taken with the WDR feature of the camera turned on and off.

WDR On

Wide Dynamic Range Camera On

WDR Off

Wide Dynamic Range Camera Off
Features
  • 1/3" Sony Color Super HAD CCD
  • 560 TV lines of resolution (color)
  • 2.8 - 12 mm Varifocal Auto-Iris lens
  • True Day / Night Capability (IR Cut Filter)
  • Super WDR Back Light Compensation by Pixel Control
  • 3-Axis Mounting - Ceiling or Wall Mount
  • 0.00004 Lux
  • Dual Voltage - DC12V / AC 24V
