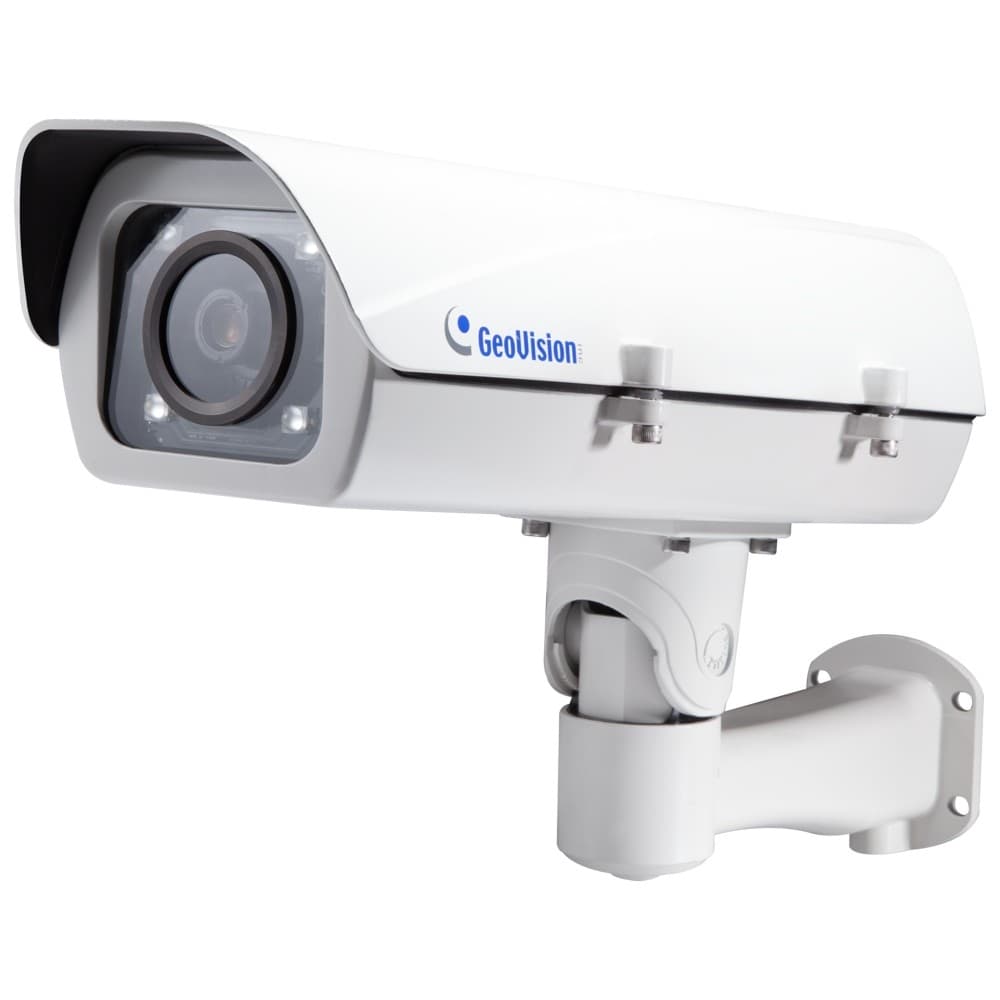

The Geovision GV-LPC1100 is an IP license plate camera that features a video resolution of 1280 x 1024 at a full 30 frames per second and has a 1/3” B/W progressive scan CMOS image sensor. The Geovision GV-LPC1100 LPR IP camera has 4 high powered infrared LEDs with an effective IR range of up to 8 ~ 10 meters / 26 ~ 32 feet. The motorized 9 ~ 22mm lens is remotely adjustable from the camera's web browser.
The camera is specifically designed to capture reflective license plates on vehicles traveling at speeds of up to 120 kmh / 74 mph. This camera is able to automatically adjust it's shutter speed based on the environment and produce clear plate capture in low light conditions.
A 9 ~ 22mm lens gives the user a wide range of viewing angles for the specific application. The IP67 / IK10 rated housing protects the vital components of the camera from harsh weather, including temperatures as low as -40°F and acts of vandalism.
This camera includes the Geovision software to get the camera up and running with ease.
Important Product Note
The Geovision GV-LPC1100 is designed for vehicles traveling at 120 km/hr (74.6 mph) or less and with reflective license plates only.
Please note: This Geovision LPR camera will not capture license plates that have a white base with red lettering.
Geovision GV-LPC1100 Features
- 1280 x 1024 at 30 frames per second
- Motorized 9 ~ 22mm Lens / Remotely Adjustable
- 1/3” B/W progressive scan CMOS image sensor
- 0 Lux Rating (With IR On)
- One Lane License Plate Capture
- 8 ~ 10 meters / 26 - 32 foot Max IR Range
- Geovision Software Included
- IP67 / IK10 Rated Outdoor Housing
- Support for iPhone, iPad, Android and 3GPP Mobile Devices
- 31 languages on Web interface
- Powered by POE IEEE 802.3 AT++
- Built-in Heater / Blower
- Motion detection
- Tampering alarm
Product Specification
Installation Guide
Examples of LPR Capability
Geovision GV-LPC1100 Dimensions
Click on the images above for a larger view.
PoE for IP Camera
This IP camera is PoE (power over Ethernet) compliant which allows the installer to run a single CAT-5e cable to provide both power and data connectivity to the camera. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.
Please refer to these diagrams, to learn more about how to wire IP cameras using a PoE injectors or a PoE switch.
