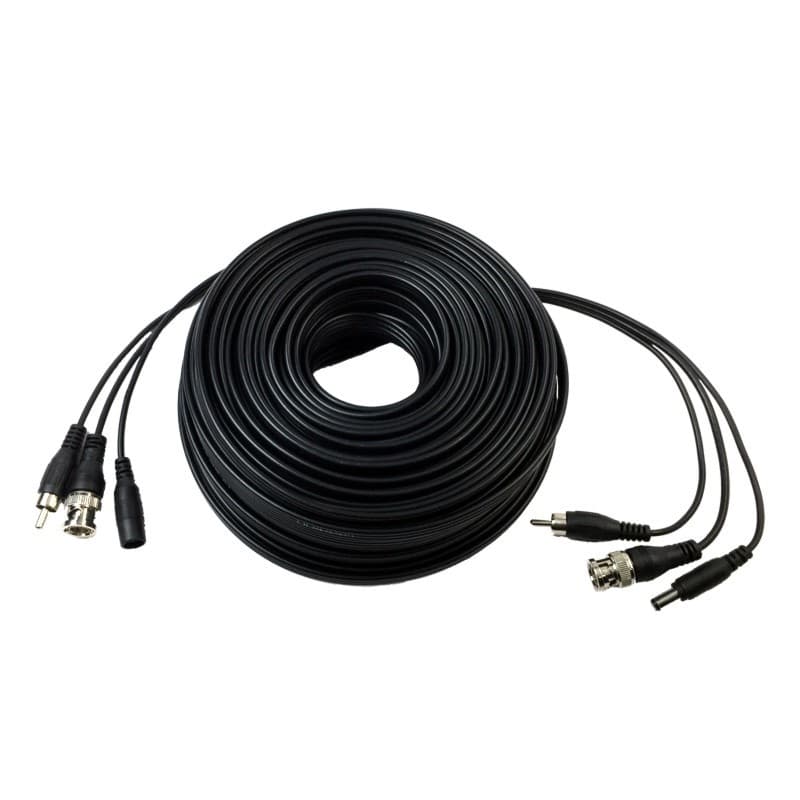

The 132AVP is a pre-made 132 foot Siamese coax video / power / audio cable used to wire a CCTV camera and audio surveillance microphone to a surveillance DVR. These cables can be used with the following types of security cameras: analog CCTV, AHD, HD-TVI, and HDCVI. These cables have been tested and work with analog CCTV cameras (CIF, D1, 960H resolutions). They have also been tested and work with HD-over-Coax security cameras in the following resolutions: 720p, 1080p / 2MP, 3MP, 4MP, 5MP, 8MP / 4K.
These video, power, and audio cables are sometimes referred to as a plug and play cable for security cameras because they are so simple to use. The 132AVP will work with any analog CCTV camera that uses a BNC video connector, 2.1mm power plug, and RCA for audio. These cables also work with HD over coax security cameras. For cameras that do not use a power plug and instead use a positive and negative terminal block or if you are using a power supply box instead of an individual power supply, installers can attach a PT-3 power lead or PT-4 power lead to convert the power plug to two individual wires.
These pre-made cables will simplify your surveillance system installation by eliminating the need to cut cables and crimp the ends on yourself. If you need to extend the distance of your cable, you can connect two or more pre-made cables together by using a BNC double female connector (not included).
If you are connecting two cables together, you also need a double female RCA coupler to connect the audio cable (not included).
Because the power portion of the cable is male on one end and female on the other, there is no additional connector needed to connect the power portion of two cables together.
Security Camera with Audio Microphone Installation
The above installation diagram shows how these audio, video, power cables can be used to install an HD security camera with an audio surveillance microphone. This is a convenient installation method for professional and DIY installers
Please take a look at our premade CCTV cable wiring guide to see additional examples of how these cables can be used to wire CCTV cameras and microphones.
Please note that we DO NOT recommend linking several cables together to create cable long runs longer than 165 feet. This may result in poor or dropped image quality. For cable runs longer than 165 feet, CCTV Camera Pros highly recommends using a
spool of Siamese coax cable. We also supply the needed connectors and tools required to cut Siamese cable and crimp
BNC connector ends on. Please see our
CCTV Tools page here.
