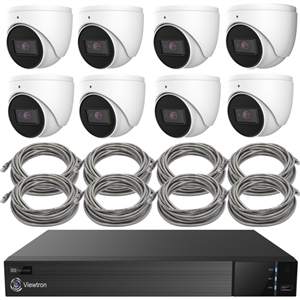

The VT-SA8D8 is an 4K AI security camera system that includes (8) 4K dome IP cameras, (1) 8ch 4K NVR w/ AI software, and (8) 100ft CAT5E network cables. The Viewtron network video recorder has 8ch PoE (power over Ethernet) built-in which makes this system extremely simple to install. Simply connect each camera to the back of the recorder using the CAT5 cable that is included. This NVR also supports many AI functions when used with
Viewtron AI security cameras.
The
IP-A8D dome IP security cameras that are included support 4 megapixel resolution and have built-in AI (artificial intelligence) functions. The AI object detection supports vehicle detection, person detection, and human face recognition / face detection. AI object detection is much more reliable than standard motion detection used by other systems.
This IP camera is enclosed in a IP67 rated weatherproof dome housing so that it can be used for indoor and outdoor installations. The built-in infrared LEDs provide infrared illumination up to 90 feet (20-30 meters). You can see a video demo of the
IR night vision here. The fixed 2.8mm lens captures provides a 107 degree horizontal field of view. The tri-axis turret dome allows installers to ceiling mount or wall mount the camera and angle the lens in any direction. This IP camera is ONVIF protocol compliant so that it can be used with any ONVIF compatible NVR, however the AI functions will only work with Viewtron NVRs
Watch this
demo video surveillance footage and check out these
surveillance images captured with this system.
The NVR and IP cameras included with this system come with a 2-year warranty and lifetime USA based technical support provided directly from CCTV Camera Pros. This is an
NDAA compliant IP camera system that is approved be for US government purchase and installation.
PoE IP Camera System
The built-in PoE ports on the Viewtron NVR enable a simple, plug and play installation. There are 8 PoE network ports on the back of the
8ch NVR (standard RJ-45 Ethernet), and 16 PoE ports on the 16ch NVR model. Using the pre-made CAT5 cable included with the system, simply connect each camera to a port on the NVR. The NVR will detect the camera and add it to the system. For the monitor display, users can use the HDMI or VGA video outputs, or both if you want to use two monitors.
Remote Security Camera Viewing Apps & Software Included
Viewtron NVRs include mobile apps for iPhone and Android. Desktop software for Mac and Windows is also included for free. You can view your security cameras live and playback recorded video on your DVR from all of these platforms - remotely over the Internet.
You own everything and there are no monthly fees!
Viewtron IP Camera NVR with AI Functions
This is the
8ch IP camera NVR that is included with this system.
Features
- Type: Stand Alone Embedded Linux Operating System
- Video Input: 8 RJ-45 Network Connection Inputs with PoE (Power over Ethernet)
- Power over Ethernet: 8ch RJ-45, 802.3af, Output Power ≤ 150W
- Supported IP Cameras: Viewtron, All ONVIF Compatible IP Camera Brands
- Supported Camera Resolutions: 720p / 1mp, 1080p / 2mp, 3mp, 4mp, 5mp, 6mp, 8mp / 4K
- Audio Surveillance Support: Yes. 8ch IP Camera Audio
- 2-Way Audio: Yes. 1 RCA Output for Speakers. 1 RCA Input for Microphone
- Recording Resolution: 720p / 1mp, 1080p / 2mp, 3mp, 4mp, 5mp, 6mp, 8mp / 4K, 30FPS per Channel
- Recording Modes: Manual, Continuous, Schedule, Motion Detection, Alarm, Smart Events
- AI Functions: Face Detection, Face Database Match, LPR / License Plate Recognition. Note: AI functions require Viewtron AI security cameras.
- Video Compression / Codec: H.264, H.265
- Monitor Outputs: HDMI, VGA
- HDMI Display: 4K Resolution, 3840 x 2160
- VGA Display: 1080p Resolution, 1920 x 1080
- Alarm Ports: 8 Inputs, 4 Outputs, Also Supports IP Camera Alarm Input
- Alarm Notification: Email, Push Notification to Mobile Apps, Desktop Software
- Mobile Apps: iPhone, Android
- VMS Software: Video Management Software for Mac and Windows PCs
- PTZ Camera Support: UTC (Up the Coax) Support to Control PTZ Over RG59 Video Cable
- Cash Register / POS Integration: Yes. Text Overlay. Cash Registers Supported
- Max Storage: 1 Hard Drive Bay, up tp 12TB
- Installed Storage: 1TB Hard Drive Included
- NVR Controls: USB Mouse Included. Wireless IR Remote Control Optional Add-On
- Warranty: 2 Year Manufacturer Warranty Direct from CCTV Camera Pros
- Tech Support: Lifetime Technical Support Direct from CCTV Camera Pros
- Detailed Specification: Download the product specification PDF file.
Camera Dimensions
The above image shows the dimensions of the IP-A8D in millimeters. For reference 94.6mm = 3.7 inches. 82.8mm = 3.25 inches.
Watch this demo to see 4K video surveillance footage recorded with an IP-A8D. The video also demonstrates the human detection function of the AI software.
Watch this demo to see the infrared night vision capability of the IP-A8D. The video also demonstrates the human detection function of the AI software in complete darkness.
Here is a snapshot captured by the IP-A8D installed at the front door to CCTV Camera Pros office in Lantana, Florida. Please click on the image to see the full 8mp / 4K resolution snapshot.
IR Night Vision
Here is a snapshot captured at night with the camera's built-in infrared LEDs on (IR night vision).
iPhone App View
Here is the remote iPhone app view of the IP-A8D. You can learn more about the
Viewtron iPhone app here.
Here is the remote iPhone app view of the IP-A4D with the camera's infrared night vision enabled. You can learn more about the
Viewtron iPhone app here.
Android App View
Here is the remote Android mobile app view of the IP-A4D. You can learn more about the
Viewtron Android mobile app here.
Here is the remote Android mobile app view of the IP-A4D with the camera in IR night vision mode. You can learn more about the
Viewtron Android mobile app here.
Viewtron NVRs have built-in PoE ports that allow you to plug PoE IP cameras directly into the Ethernet ports. The NVR provides power to the cameras over these PoE ports, and the cameras automatically connect to the NVR software. This makes installation extremely easy for DIY and professional installers. We highly recommend
Viewtron IP cameras with PoE for use with these NVRs.
Here is some additional information about the ports on the back of the NVR (starting from left to right).
- The power supply adapter that is included with the NVR plugs into this port. (labeled in purple)
- To the right of the PoE ports, there is a LAN port. If you plan on connecting your NVR to a network and / or the Internet, you will use this port to connect to your router or switch with Ethernet cable (CAT5 or CAT6).
- Viewtron NVRs have HDMI and VGA monitor outputs. Both of these monitor outputs can be used at the same time (dual monitor support).
- The USB port can be used for the mouse that is included or to connect a USB drive for video backup / export.
- There is one audio input port for an audio surveillance microphone. There is one audio output to connect external speakers.
- Burglar alarm sensors can be integrated into these NVRs using the alarm input / alarm output ports.
Dome IP Camera
This is the
IP-A8D dome IP camera that is included with this system.
IP-A8D Features
- Video Output: Network IP / RJ-45 Network Connection, ONVIF Protocol Compliant
- Video Format: H.264, H.264s, H.265, H.265+, H.265s, MJPEG
- Supported Resolutions: 8mp / 4K, 4mp, 6mp, 5mp, 4mp, 2K, 3mp, 1080p, 720p, D1, CIF, 480 x 240
- Video Frame Rate: 30 FPS at 8mp / 4K Resolution
- Image Sensor: 1/2.8" CMOS
- Infrared: Yes. Built-in IR Night Vision. Up to 30 Meter / 90 Feet
- Weatherproof: Yes. IP67 Housing. Indoor / Outdoor Installation
- Lens: Fixed 2.8mm Fixed Lens / 106.7 Degree Field of View
- Audio: Built-in Mic, 1ch audio input
- Style: White Dome, Turret Style Dome, Metal
- SD Card Slot: Yes. Built-in micro SD card slot supports up to 256GB micro SD card
- Installation: Ceiling or Wall Mount, Optional Wall Mount Bracket & Junction Box
- Remote Viewing: Yes. iPhone App, Android App, Mac Software, Windows Software Included
- Power: DC12V DC Power supply or PoE (Power over Ethernet)
- Image Control: Digital Wide Dynamic Range Function, 3D DNR (Digital Noise Reduction)
- Analytics: Yes. Facial Recognition / Face Match Database, People Detection, Vehicle Detection, Face Detection, Perimeter Protection, Target Counting, Intrusion Zone Detection, Exception Detection.
Here are some optional installation mounts and brackets that are available for this camera.
Junction Box
This is the
VT-J301 security camera junction box option for this camera. This round junction box can be used for ceiling or wall mount installations.
Wall Mount L-Bracket
This is the
VT-L203 wall mount bracket option for this camera.
The NVR and IP cameras included with this system have built-in AI software for advanced video analytics. You can see the latest
video demos Viewtron AI cameras here. The following Intelligent Video Analytics are supported by this system.
- Perimeter Protection - Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification)
- Target Counting - Line crossing human/motor vehicle/non-motor vehicle counting
- Exception Detection - Scene change, video blur and video color cast detection
- Face Detection - Face detection and face capture
The vehicle detection function of Viewtron AI cameras is much more reliable than video motion technique used by a non-AI camera. Traditional video motion detection produces a lot of false alerts. A well trained AI camera can detect cars and motorcycles in real time and with 99% accuracy. Object detection events can trigger alarms such as video recording, mobile app push notifications, DVR buzzer, photo snapshots, and email alerts.
The person detection function of Viewtron AI cameras works the same as vehicle / car detection. An intrusion zone is mapped out on the DVR interface. The only difference is that human detection is selected in the setup, instead of vehicles. The red rectangle is the intrusion zone in in the above screenshot. You can see when Mike crosses over the intrusion zone, he is detected as a human and an alarm event is triggered.
Watch this video to learn how to setup a face recognition capabilities of this security camera system. This video demonstrated face recognition and face detection. We also demonstrate how to add faces to the face database on the NVR using video surveillance footage recorded on the NVR. You can also add faces to the database using the mobile app. You can watch additional
face recognition camera videos here. Please also before to check out these installation instructions for face recognition cameras.
The above diagram shows how a POS system /cash register can be installed with a Viewtron NVR and IP camera. This allows point of sale text overlay over one or more security cameras on your system. The point of sale / cash register is connected to the same network as the network video recorder. This is done by connecting both devices to the same network switch or router using CAT5 or CAT6 network cable. The IP camera can also be connected to the switch or it can be connected directly to the Viewtron NVR (because the NVR has built-in PoE ports).
For POS systems that do not have network capability, CCTV Camera Pros supplies this
RS-232 to Ethernet converter to capture cash register data from the printer port.
You can learn more about
CCTV POS text integration with Viewtron NVRs and DVRs here.
Product Documents and Specifications
This IP camera system is NDAA compliant. That means that all of the pars are not manufactured by any of the manufacturers on the NDAA (the National Defense Authorization Act) list of banned manufacturers. The Viewtron NVR, IP cameras, cabling and PoE switch (if applicable) do not use any materials from banned manufacturers either. This security camera system may safely be purchased for government use. You can download
CCTV Camera Pros NDAA letter of guarantee here. You can find additional NDAA compliant video surveillance products here.
