The Viewtron IP-F6 is a 360 security camera / fisheye IP camera with 6mp resolution. This 360 degree surveillance camera has built-in audio surveillance microphone and IR LEDs for IR night vision. The Viewtron IP-F6 IP is enclosed in a IP67 rated weatherproof fisheye dome housing so that it can be used for indoor and outdoor installations. The built-in IR LEDs provide infrared illumination up to 60 feet. The fixed 1.65mm fisheye lens captures 360 degree field of view when ceiling mounted. This IP camera can also be configured to capture a 180 degree field of view when wall mounted. This IP camera is ONVIF protocol compliant so that it can be used with any ONVIF compatible NVR (3rd party manufacturer DVRs supported).
The AI software built into this security camera supports human detection, car detection, and motor-vehicle detection (bicycles, scooters). This AI camera DOES NOT support face detection / facial recognition. Please refer to these
face recognition camera models if you need automated facial recognition. Watch this video demo to see the amazing 360 degree lens and AI software of this camera.
IP-F6 Features
- Video Output: Network IP / RJ-45 Network Connection, ONVIF Protocol Compliant
- Video Format: H.264, H.264+, H.265, H.265+
- Supported 360 Resolutions: 6MP ( 2160 × 2160 ), 2MP ( 1440 × 1440 ), 1MP ( 1080 × 1080 )
- Supported 180 Resolutions: 6MP ( 3200 × 1800 ), 4MP ( 2560 × 1440 ), 2MP ( 1920 × 1080 )
- Video Frame Rate: 20 FPS at 6MP Resolution
- Image Sensor: 1 / 2.5 "CMOS
- Infrared: Yes. Built-in IR Night Vision. Up to 20 Meter / 60 Feet
- Weatherproof: Yes. IP67 Camera. High quality, corrosion-proof aluminum alloy, stainless steel screws. Completely weatherproof for Indoor / Outdoor Installation.
- Construction: Corrosion Resistant Alluminum Alloy. Stainless Steel Screws
- Style: White Dome, Metal
- Lens: Fixed 1.65mm Fisheye Lens / 360 Degree Field of View
- Audio: Built-in Audio Surveillance Microphone
- Installation: Ceiling or Wall Mount

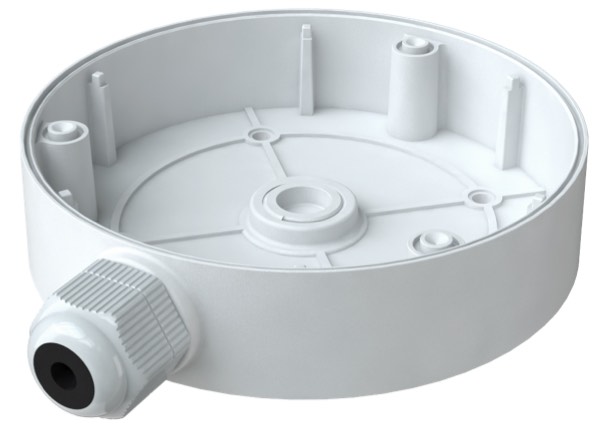

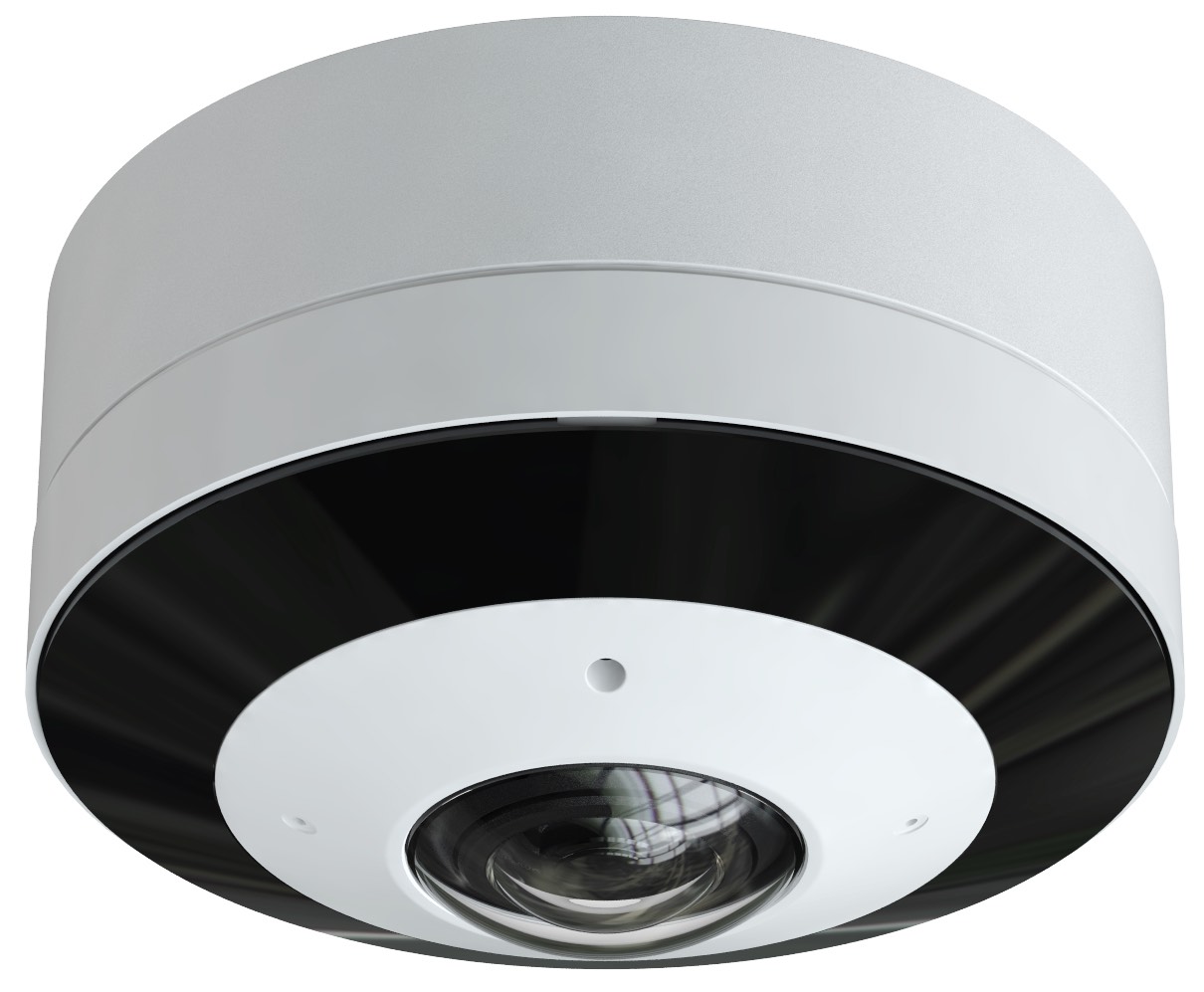

- Junction Box: Yes. Optional Wall Bracket / Outdoor Junction Box / Ceiling Pendant Mount Available
- Remote Viewing: Yes. iPhone App, Android App, Mac Software, Windows Software Included
- Power: DC12V DC Power supply or PoE (Power over Ethernet)
- Image Control: Digital Wide Dynamic Range Function, 3D DNR (Digital Noise Reduction)
- SD Card Slot: Yes. Built-in micro SD card slot supports up to 128GB micro SD card
- AI Software: Yes. Human Detection, Vehicle Detection, Bike / Scooter Detection, Perimeter Intrusion Detection, Line Crossing Detection.
- Product Specification File: Download Viewtron IP-F6 Specification
- NDAA Compliant IP Camera
Camera Dimensions
The above image shows the dimensions of the IP-F6 in millimeters. For reference 217.7mm = 8.57 inches. 80.5mm = 3.17 inches.
Watch this video to see how well the Viewtron IP-F6 monitors this entire room at CCTV Camera Pros office. The 360 fisheye lens easily covers the entire 29 foot x 16 foot room. Mike also demonstrates how to setup the AI software for human detection / intrusion detection.
Mobile App for iPhone and Android
Watch this video to see the virtual reality view from the mobile app for iPhone and Android. You can watch additional Viewtron mobile app videos demos here.
Viewtron 360 IP Camera Snapshot Images
Here are some snapshots captured from the Viewtron IP-F6 connected to the Viewtron IP camera NVR at CCTV Camera Pros office. Please click on the below images for a larger / high resolution image.
16:9 Aspect Ratio
This is what the Viewtron IP-F6 fisheye camera looks like when viewed in normal widescreen mode (16:9 aspect ratio) on a monitor connected to the HDMI output of the Viewtron NVR.
1:1 Aspect Ratio
This is the 1:1 aspect ratio view.
Office Dimensions
Here are the dimensions at CCTV Camera Pros office where our Viewtron IP-F6 360 view security camera is installed. The room is 29 feet by 16 feet.
360 Camera Ceiling Installation
This is where we installed the Viewtron IP-F6 to the ceiling in one of the rooms at CCTV Camera Pros office in West Palm Beach, Florida.
Office Ceiling Tile Installation
Here is a wide angle view of the room where we installed the Viewtron IP-F6 360 camera.
Product Specification
Download the complete
Viewtron IP-F6 product specification here.
View Your Security Cameras Remotely
The IP-D8 works great with
Viewtron hybrid security camera DVRs and Viewtron IP camera NVRs. Viewtron hybrids support BNC cameras and network IP cameras up to 4K resolution. Viewtron NVRs support IP cameras and have built-in power over Ethernet. The remote camera viewing apps are able to connect directly to Viewtron IP cameras and also to DVRs / NVRs.
PoE for IP Camera
This IP camera is PoE (Power-over-Ethernet) compliant which allows the installer to run a single CAT-5e network cable to provide both power and data connectivity to the camera. CAT6 cable can also be used. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.
Please refer to these diagrams, to learn more about
how to wire IP cameras using a PoE injectors or a PoE switch.
This is an IP67 rated security camera. The weatherproof housing provides 100% protection from dust and 100% protection from water intrusion. This camera can safely be installed outdoors in areas that have a extremely heavy rain and high humidity. It can also be installed in very cold climates and along ocean coasts where there is salt water in the air.
The camera body is made with high quality, corrosion-proof alloy aluminum. Stainless steel mounting screws are included for installation. CCTV Camera Pros highly recommends IP67 security cameras for outdoor installations. You can learn more about
IP67 cameras here.
Free Custom Quotes & Consultations
CCTV Camera Pros designs custom security camera systems for home, business, and government customers all over the world. When you purchase multiple cameras and complete systems, we are able to apply considerable discounts to orders. We realize that some customers need a phone consultation with a professional designer to talk through their system requirements. Please use these links to request help from a CCTV Camera Pro.
This IP camera is NDAA compliant. That means that it is not manufactured by any of the manufacturers on the NDAA (the National Defense Authorization Act) list of banned manufacturers. This security camera does not use any materials from banned manufacturers either. This camera may safely be purchased for government use. You can download
CCTV Camera Pros NDAA letter of guarantee here. You can find additional NDAA compliant security camera systems here.
