Please Note: The Vivotek FD8167 is no longer manufactured, and has been replaced by the Vivotek FD8167-T.

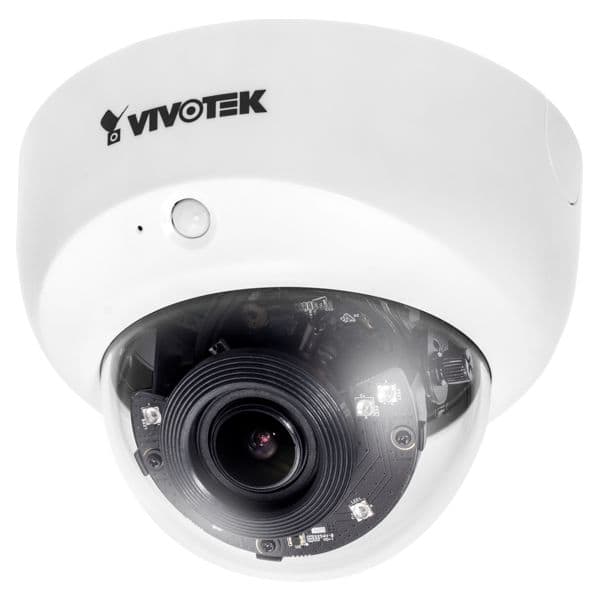

The Vivotek-FD8167 is a low light IP dome camera featuring a
2 Megapixel CMOS image sensor and 2.8 ~ 12mm Varifocal lens. The Vivotek-FD8167 low light IP dome camera is capable of recording in full 1080P (1920 x 1080) resolution at up to 30 frames per second.
For low light environments the FD8167 has
built-in infrared LED's with an effective range of up to 30 meters / 90 feet. A Removable IR Cut Filter blocks any unnecessary infrared lighting and only allows the visible light to pass through, enhancing the quality of the image.
Further enhancing the low light image quality is the
WDR Enhancement feature, specifically designed for environments with bright or dark back lighting. It works by combining the brightest part of the image with the darkest part to create one highly detailed image.
The FD8167 features a
PIR Motion Sensor providing true motion detection and reducing the chance of false motion triggers. The 3D Digital Noise Reduction feature reduces the amount of graininess in the image and helps to free up bandwidth when streaming.
A few more features of the FD8167 include a
Micro SD / SDHC / SDXC Card Slot for local recording, two way audio support and POE 802.3af compliance. Also included is a 32 channel central management software for camera management and recording.
Vivotek-FD8167 Features:
- 2.8 ~ 12mm Varifocal Lens
- 1920 x 1080 Resolution at 30FPS
- 1/2.8" 2 Megapixel Progressive Scan CMOS Image Sensor
- WDR Enhancement
- 30 Meter / 90 Foot Infrared Range
- 0.001 Lux Rating in B /W mode / 0.06 Lux Rating in Color Mode
- POE 802.3af Compliant
- Tampering Detection
- Supports Two Way Audio
- PIR Motion Detection
- 12V-DC
- Remotely Accessible
- H.264 and MJPEG Video Compression
- Micro SD / SDHC / SDXC Card Slot
- Includes Vivotek 32ch Central Management Software
- ONVIF Support
Product Specification
Camera Dimensions
Included in the box
PoE for IP Camera
This IP camera is PoE (power over Ethernet) compliant which allows the installer to run a single CAT-5e cable to provide both power and data connectivity to the camera. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.
Please refer to these diagrams, to learn more about
how to wire IP cameras using a PoE injectors or a PoE switch.
