NUUO-PC3004, 4 Channel Digital Security Recorder, 120 FPS
Digital Security Recorder

Alternative Views:


Digital Security Recorder

NUUO DVR Card Brochure
NUUO DVR Card Brochure
Our Price: $1,569.99


Free Shipping
Product Code: NUUO-PC3004


HDD:


OS:


Discontinued
Description


Please Note: The NUUO-PC3004 is no longer manufactured. Please refer to the NUUO PC page for a replacement.

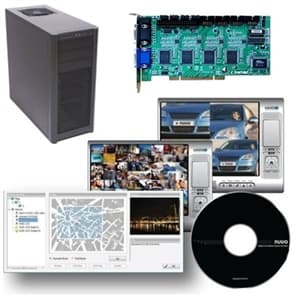

The NUUO-PC3004 is a 4 Channel Digital Security Recorder that supports 120 frames per second recording. That means 30 frames per second per camera for a total of 4 cameras (real time recording). The NUUO-PC3004 also supports four channels of audio surveillance for microphones. This Digital Security Recorder comes complete with the PC Tower, installed DVR Card, software CD and product manual. It is compatible with Windows 8 operating systems. The NUUO-PC3004, 4 Channel Digital Security Recorder uses H.264 software compression and allows you to stack up to two SCB-3004 NUUO cards in a single PC so that you can grow your system from a 4 channel DVR to an 8 channel. As with all NUUO DVR cards except for the 7000 series, the SCB-3004 is a PCI DVR card which means it is inserted into the PCI slot on a Windows PC motherboard.

The SCB-3004 DVR cards used in this digital security recorder can also be used in with NUUO IP camera software to create a hybrid surveillance system consisting of both CCTV cameras and IP cameras. The hybrid system can support up to 32 cameras on a single computer (8 channel analog cameras + 24 IP cameras with IP camera licenses). CCTV Camera Pros also builds custom surveillance DVR / NVRs using NUUO DVR cards and IP camera licenses to create hybrid surveillance systems. We can build custom DVRs using desktop PCs as well as 4U rack mount servers.

NUUO Digital Security Recorder Features:

  • Supports up to 4 CCTV Cameras
  • Supports 4 Channel Audio Surveillance
  • 120 Frames Per Second Recording (30 Frames x 4 channels = real time video)
  • Supported Video Resolutions: 704x480, 640x480, 352x240
  • Stack 2 SCB-30004 DVR cards in a single computer to grow your system to 8 cameras
  • Can be used with NUUO IP camera software (up to 32 channels hybrid system)
  • H.264 Software Compression
  • Compatible with Windows 8 operating system
  • Scheduled, motion detection, and continuous recording
  • 6 Types of Video Event Detection: General Motion, Foreign Object Detection, Missing Object Detection, Camera Lose Focus Detection, Camera Occlusion Detection, Camera Signal Loss Detection
  • Instant Response to Alerts via E-Map Popup, Display on Monitor, Audio Alert, Email Alert, CMS Alert, Trigger Digital Output, Phone Call Alert, Control PTZ Cameras to Track, SMS Alert (Text Message), Upload Image to via FTP
  • Compatible with all CCTV cameras that we sell
  • Can be used with NUUO IP camera software to integrate both IP and CCTV cameras
  • Click here for a full list of features: NUUO DVR Card Features
  • Click here to download the NUUO DVR Card Brochure

NUUO SCB-3004 DVR Card Specification

NUUO SCB-3004 Cut Sheet
NUUO SCB-3004 DVR Card Specification
